Key Features
|
§ Sony Diagonal 7.81 mm (Type 1/2.3)
|
|
|
CMOS Image Sensor IMX377CQT
|
|
|
§ Active pixels: 4024H x 3036V
|
|
|
§ Pixel size: 1.55 um x 1.55 um
|
|
|
§ Color sensor
|
|
|
§ Interface: MIPI output
|
|
|
§ Support M12 lens
|
|
|
§ Module Size: 38mmx38mm
|
|
|
§ Weight: 12 g
|
|
Lens Spec
|
§ Model: SYD1201A
|
|
|
§ Focal length: 3.7 mm
|
|
|
§ Aperture, F/#: 2.8 +/- 5%
|
|
|
§ Built in 650nm IR cut filter
|
|
|
§ FOV (D/H/V): 100° / 86° /69°
|
|
|
§ TV Distortion: -1.0 %
|
|
|
§ Mount: M12 x P0.5
|
|
Interfaces
|
|
|

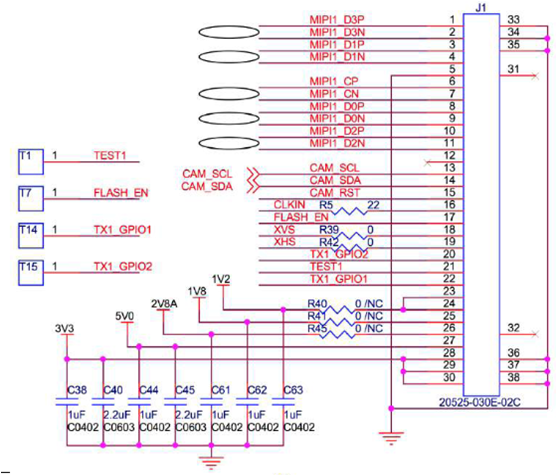

Interface J1:
|
|
§ Number of Positions: 30
|
|
§ Pitch: 0.4mm
|
|
§ Mating I-PEX cable: LIFAW-
|
|
1233-T1 (200mm)
|
|

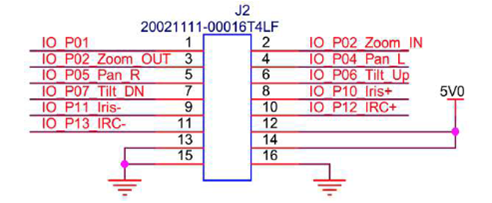

Interface J2:
|
|
|
§ Number of Positions: 16
|
|
§ Pitch: 1.27mm
|
|

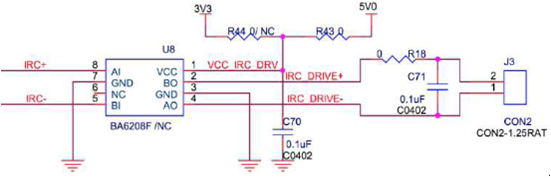

Interface J3:
|
|
|
§ Part#: 1734829-2
|
|
§ Number of Positions: 2
|
|
§ Pitch: 1.25mm
|
|

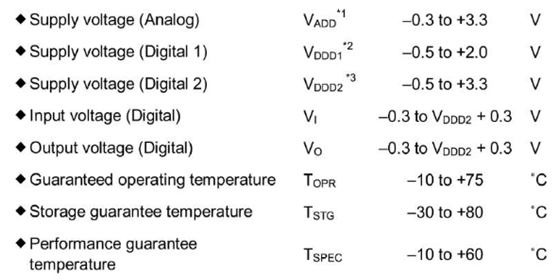

Absolute Maximum Ratings
|
|
|

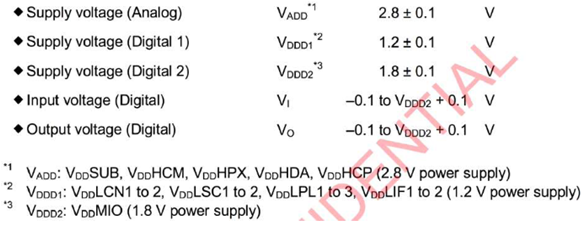

Recommended Operating Conditions
|
|
|

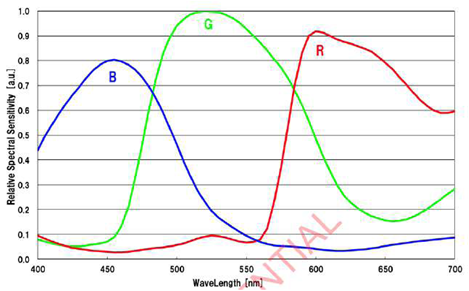

Spectral Sensitivity Characteristics
|
|
|

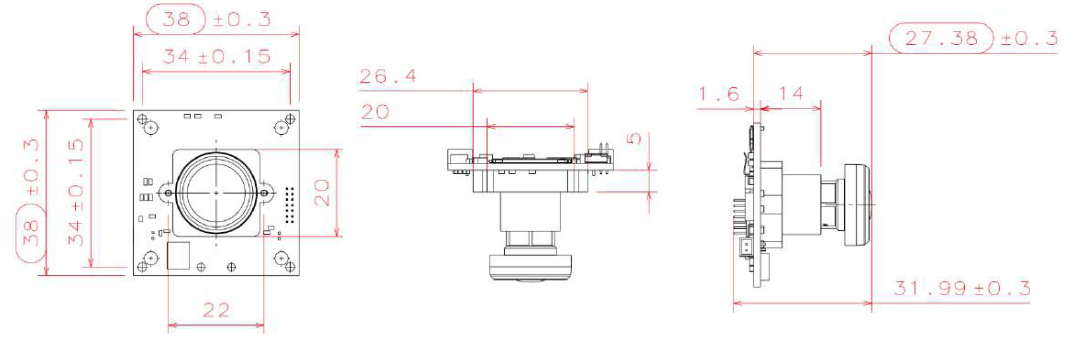

Dimensions
|
|
